I developed an EA based on a strategy and its revolves around a moving average. did it on mt4 but got stuck tho i finished the code . I created same code it mql5 and programmed the custom moving average similarly but when the EA runs s, the Journal prints cannot Load moving average
MQL5:
//+------------------------------------------------------------------+
//|                                               Moving Average.mq5 |
//|                   Copyright 2005-2014, MetaQuotes Software Corp. |
//|                                              http://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright   "2005-2014, MetaQuotes Software Corp."
#property link        "http://www.mql5.com"
#property description "The Hand of God expert advisor"
////--- Inputs
input double Lots          = 0.5;
input double MaximumRisk   = 1;
input double DecreaseFactor= 1;
input int    MovingPeriod  = 34;
input int    MovingShift   = 0;
int POSITION_BUY;
int POSITION_SELL;
//+------------------------------------------------------------------+
//| Calculate open positions                                         |
//+------------------------------------------------------------------+
int CalculateCurrentOrders()
{
   int buys = 0, sells = 0;
   for (int i = 0; i < PositionsTotal(); i++)
   {
      if (PositionGetInteger(POSITION_TYPE) == POSITION_BUY)
         buys++;
      if (PositionGetInteger(POSITION_TYPE) == POSITION_SELL)
         sells++;
   }
   return (buys - sells);
}

//+------------------------------------------------------------------+
//| Calculate optimal lot size                                       |
//+------------------------------------------------------------------+
double LotsOptimized(){
   double accountBalance = AccountInfoDouble(ACCOUNT_BALANCE);
   double calculatedLots; // New variable to store the calculated lot size

   if (accountBalance < 100)
      calculatedLots = 0.02;
   else if (accountBalance < 500)
      calculatedLots = 0.05;
   else if (accountBalance < 1000)
      calculatedLots = 0.1;
   else if (accountBalance < 2500)
      calculatedLots = 0.11;
   else if (accountBalance < 5000)
      calculatedLots = 0.12;
   else if (accountBalance < 5500)
      calculatedLots = 0.15;
   else if (accountBalance < 10000)
      calculatedLots = 0.2;
   else if (accountBalance < 15000)
      calculatedLots = 0.25;
   else if (accountBalance < 25000)
      calculatedLots = 0.5;
   else if (accountBalance < 50000)
      calculatedLots = 1;
   else if (accountBalance < 100000)
      calculatedLots = 2;
   else
      calculatedLots = 3;

   return calculatedLots; // Return the calculated lot size
}





//+------------------------------------------------------------------+
//| Check for open order conditions                                  |
//+------------------------------------------------------------------+
void CheckForOpen()
{
   double ma_value[];
   ArrayResize(ma_value, 2); // Initialize ma with 2 elements

   //--- Go trading only for the first tick of the new bar
   if (iVolume(_Symbol, 0,0) < 2660)
      return;

   //--- Get Moving Average
   double ma_valueCurrent = iMA(NULL, 0, 34,0,MODE_LWMA, 0);
   double ma_valuePrevious = iMA(NULL, 0, 34,0,MODE_LWMA,1);
   //int maHandle = iMA(Symbol(), 0, 14, 0, MODE_SMA, PRICE_CLOSE);
   //ma[i] = iMA(_Symbol, _Period, MovingShift, PRICE_CLOSE, MODE_LWMA,i);

   //--- Sell conditions
   if (iClose(Symbol(), 0, 1) <= ma_valuePrevious && iClose(Symbol(), 0, 0) < ma_valueCurrent && iVolume(Symbol(), 0, 0) > 4000)
   {
   // Define a trade request structure
      MqlTradeRequest request;
      MqlTradeResult result;

   // Set the trade request parameters
      request.action = TRADE_ACTION_DEAL; // Use TRADE_ACTION_DEAL for dealing, which includes both buying and selling
      request.type = ORDER_TYPE_SELL; // Use ORDER_TYPE_SELL for a market sell order
      request.symbol = _Symbol;
      request.volume = LotsOptimized(); // Specify your lot size here
      request.price = SymbolInfoDouble(_Symbol, SYMBOL_BID);
      //request.slippage = 6;
      request.deviation = 0;
      request.comment = "";
      request.magic = 0;
      request.tp = 0; // Take profit (optional)
      request.sl = 0; // Stop loss (optional)

   // Send the order
      if (OrderSend(request, result))
      {
   // Order was sent successfully
         Print("Sell order sent. Order ticket: ", result.order);
      }
      else
      {
   // Error handling
         Print("OrderSend error: ", result.retcode);
      }

   }

   //--- Buy conditions
   if (iClose(Symbol(), 0, 1) >= ma_valuePrevious && iClose(Symbol(), 0, 0) > ma_valueCurrent && iVolume(Symbol(), 0, 0) > 4000)
   {
   // Define a trade request structure
      MqlTradeRequest request;
      MqlTradeResult result;

     // Set the trade request parameters for a BUY order
      request.action = TRADE_ACTION_DEAL; // Use TRADE_ACTION_DEAL for dealing, which includes both buying and selling
      request.type = ORDER_TYPE_BUY; // Use ORDER_TYPE_BUY for a market buy order
      request.symbol = _Symbol;
      request.volume = LotsOptimized(); // Specify your lot size here
      request.price = SymbolInfoDouble(_Symbol, SYMBOL_ASK); // Use SYMBOL_ASK for buying
     // request.slippage = 6;
      request.deviation = 0;
      request.comment = "";
      request.magic = 0;
      request.tp = 0; // Take profit (optional)
      request.sl = 0; // Stop loss (optional)

   // Send the order
      if (OrderSend(request, result))
      {
   // Order was sent successfully
         Print("Buy order sent. Order ticket: ", result.order);
      }
      else
      {
   // Error handling
         Print("OrderSend error: ", result.retcode);
      }

   };
};

//+------------------------------------------------------------------+
//| Check for close order conditions                                 |
//+------------------------------------------------------------------+
void CheckForClose()
{
   for (int i = PositionsTotal() - 1; i >= 0; i--)
   {
    //  if (PositionSelectByIndex(i) == false)
      //   break;

    //  if (PositionGetSymbol() != Symbol())
      //   continue;

      // Check order type
      if (PositionGetInteger(POSITION_TYPE) == POSITION_BUY)
      {
         // Check conditions on a 30-minute chart
         double highestHigh = iHigh(Symbol(), 30, iHighest(Symbol(), 30, MODE_HIGH, 54, 0));
         double lowestLow = iLow(Symbol(), 30, iLowest(Symbol(), 30, MODE_LOW, 26, 0));

         // Check if either the highest high or lowest low conditions are met
         if (SymbolInfoDouble(Symbol(), SYMBOL_BID) <= lowestLow || SymbolInfoDouble(Symbol(), SYMBOL_BID) >= highestHigh)
         {
        //    int res = OrderClose(PositionGetTicket(), PositionGetDouble(POSITION_VOLUME), SymbolInfoDouble(Symbol(), SYMBOL_BID), 3, clrWhite);
       //     if (res == false)
               Print("OrderClose error ", GetLastError());
         }
      }

      if (PositionGetInteger(POSITION_TYPE) == POSITION_SELL)
      {
         // Check conditions on a 30-minute chart
         double highestHigh = iHigh(Symbol(), 30, iHighest(Symbol(), 30, MODE_HIGH, 54, 0));
         double lowestLow = iLow(Symbol(), 30, iLowest(Symbol(), 30, MODE_LOW, 26, 0));

         // Check if either the highest high or lowest low conditions are met
         if (SymbolInfoDouble(Symbol(), SYMBOL_ASK) >= highestHigh || SymbolInfoDouble(Symbol(), SYMBOL_ASK) <= lowestLow)
         {
          //  int res = OrderClose(PositionGetTicket(), PositionGetDouble(POSITION_VOLUME), SymbolInfoDouble(Symbol(), SYMBOL_ASK), 3, clrWhite);
        //    if (res == false)
               Print("OrderClose error ", GetLastError());
         }
      }
   }
}

//+------------------------------------------------------------------+
//| OnTick function                                                  |
//+------------------------------------------------------------------+
void OnTick()
{
   // Initialize the ma array
   double ma_value[];
   int bars = Bars(_Symbol, _Period); // Get the number of bars for the current symbol and timeframe
   ArrayResize(ma_value, bars);

   for (int i = 0; i < bars; i++)
   {

   ma_value[i] = iMA(NULL, 0, 0, 0, MODE_LWMA, i);

    }

   long stopsLevel = SymbolInfoInteger(_Symbol, SYMBOL_TRADE_STOPS_LEVEL);
if (stopsLevel < 0)
   return;
}


Attachments

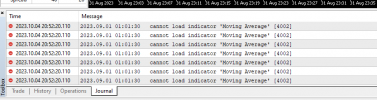

  • ma not load.png
    ma not load.png
    25.9 KB · Views: 3

Enivid

Administrator
Staff member
Nov 30, 2008
19,212
1,504
144
Odesa
www.earnforex.com
Working with indicators is completely different in MT4.

First, you create indicator handles in the OnInit() handler. Then, you copy indicator buffers inside your OnTick(), checking whether the copying went alright (if it didn't, it's likely the data isn't ready yet and you have to wait).

By the way, this line tries to create a handle for an MA with the period = 0, which is probably causing your cannot load indicator 'Moving Average' [4002] error:
MQL5:
ma_value[i] = iMA(NULL, 0, 0, 0, MODE_LWMA, i);
However, even if you set a correct period there, it still won't work because you have to fix the entire code as I've described above.


CEO

Trader
Sep 1, 2023
11
0
7
23
Done and I'm so happy. but i havent tested it yet to see if it takes the trades. MA appears now
